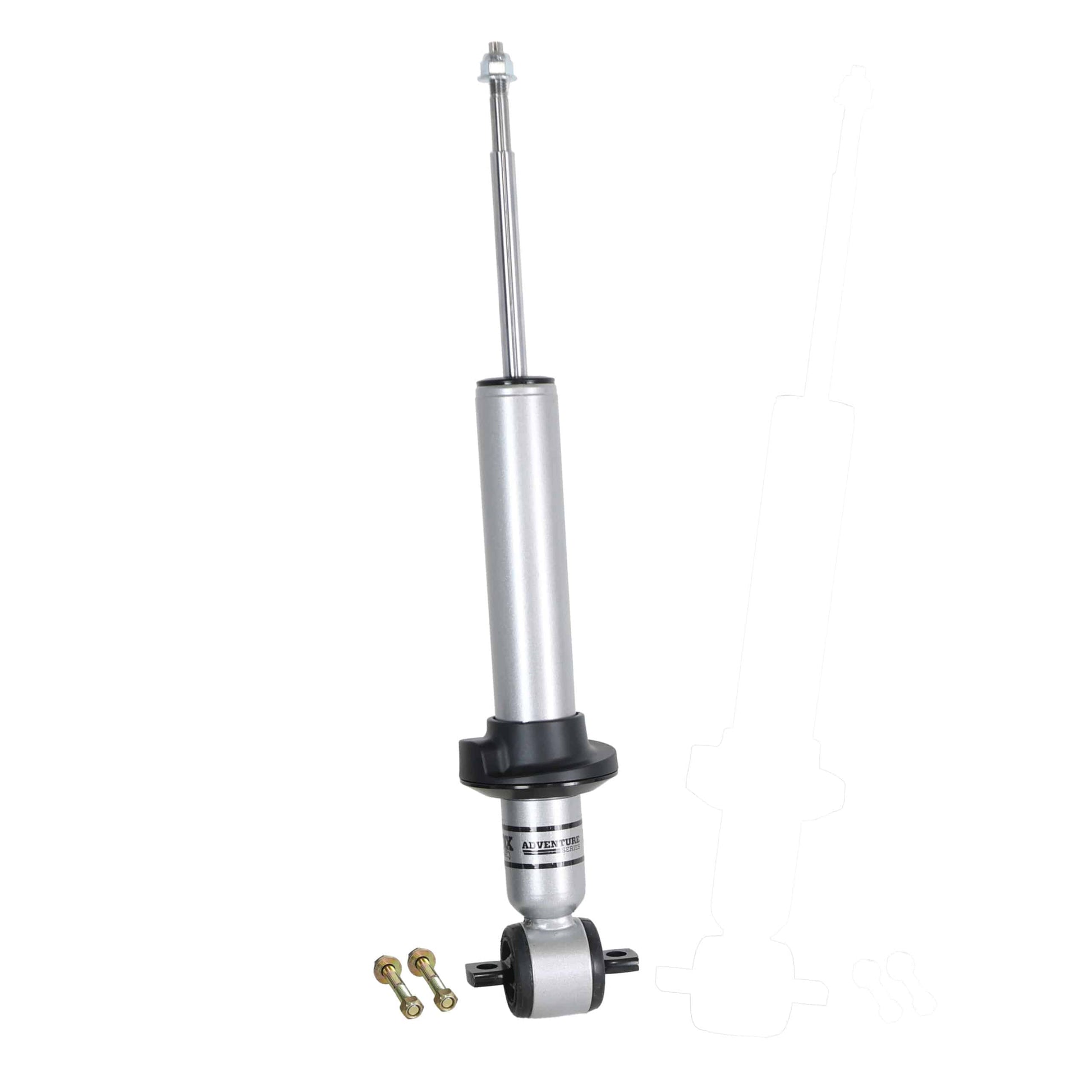

RIDETECH ADVENTURE SERIES FRONT STRUT 2WD/4WD FORD F150 15-26

Single Part # for 2015-2026 Ford F-150 Front Adventures Series Lowering Strut

FOX’s proven damping technology provides a comfortable on-road ride and predictable handling whether your truck is a daily driver or weekend street truck bruiser. Their monotube design uses an internal floating piston (IFP) that separates the shock oil from the high-pressure, nitrogen-charged gas chamber. This prevents oil aeration for fade-free performance when put to hard use. These shocks are rubber bushed in the front and poly in the rear, providing additional compliance and reduce unwanted NVH, ensuring passengers enjoy the ride as much as whoever is behind the wheel.

Features & Benefits:

Best in category ride quality for a street-focused lowering kit.

Front drop is six position adjustable in 1/2’’ increments (1’’-3.5’’) via snap ring collar system.

Bolt-on Installation; no welding or fabrication required

Made in the USA

Kit retains factory springs and top hats for comfortable street manners (installation requires spring compressor)

Steel body construction with durable silver powder coat for attractive looks and corrosion resistance

Fox Factory 2.0 monotube design features a smooth bore and honed seamless alloy bodies with a 1.834’’ large diameter piston for improved damping you can feel

Monotube technology is vastly superior to older twin-tube designs

Quiet nitrile rubber bushings reduce noise, vibration, and harshness and increase suspension compliance over heims. Great for street use!

Fox Factory’s proprietary JM92 Advanced Suspension Fluid improves performance at variable temperatures

5/8″ shaft is hard chrome plated heat-treated alloy steel to combat deflection and bending during hard use

Shocks backed by a one-year warranty

FITMENT NOTES:

Compatible with 2015-2025 F-150 2WD/4WD, including BlueCruise, and PowerBoost equipped trucks. NOT compatible with RAPTOR or Lightning models.

Spring compressor required (verify whether height adjustment can be done on vehicle or if requires removal before adjustment).

If re-using factory Ford upper control arm, headlight sensor bracket kit # 12299506 is required. Payload capacity sensor part # 12299507 is also required.

If utilizing Ridetech upper control arm, headlight sensor bracket kit # 12299501(two height sensors on driver’s side)/# 12299502 if truck has four headlight sensors (On-board scale optioned pickups) are required.

If re-using OE Ford upper control arm, slotting the lower control arm bolt hole  by ½’’ inboard (toward the engine) is required (see instructions). To avoid slotting LCA, purchase Ridetech’s optional upper control arms. Below 3” front ride height reduction, slotting of the lower control arm bolt holes isn’t sufficient for alignment. Upgrade to Ridetech tubular control arms.
