RIDETECH TOURING LOWERING KIT 2WD/4WD FORD F150 15-26

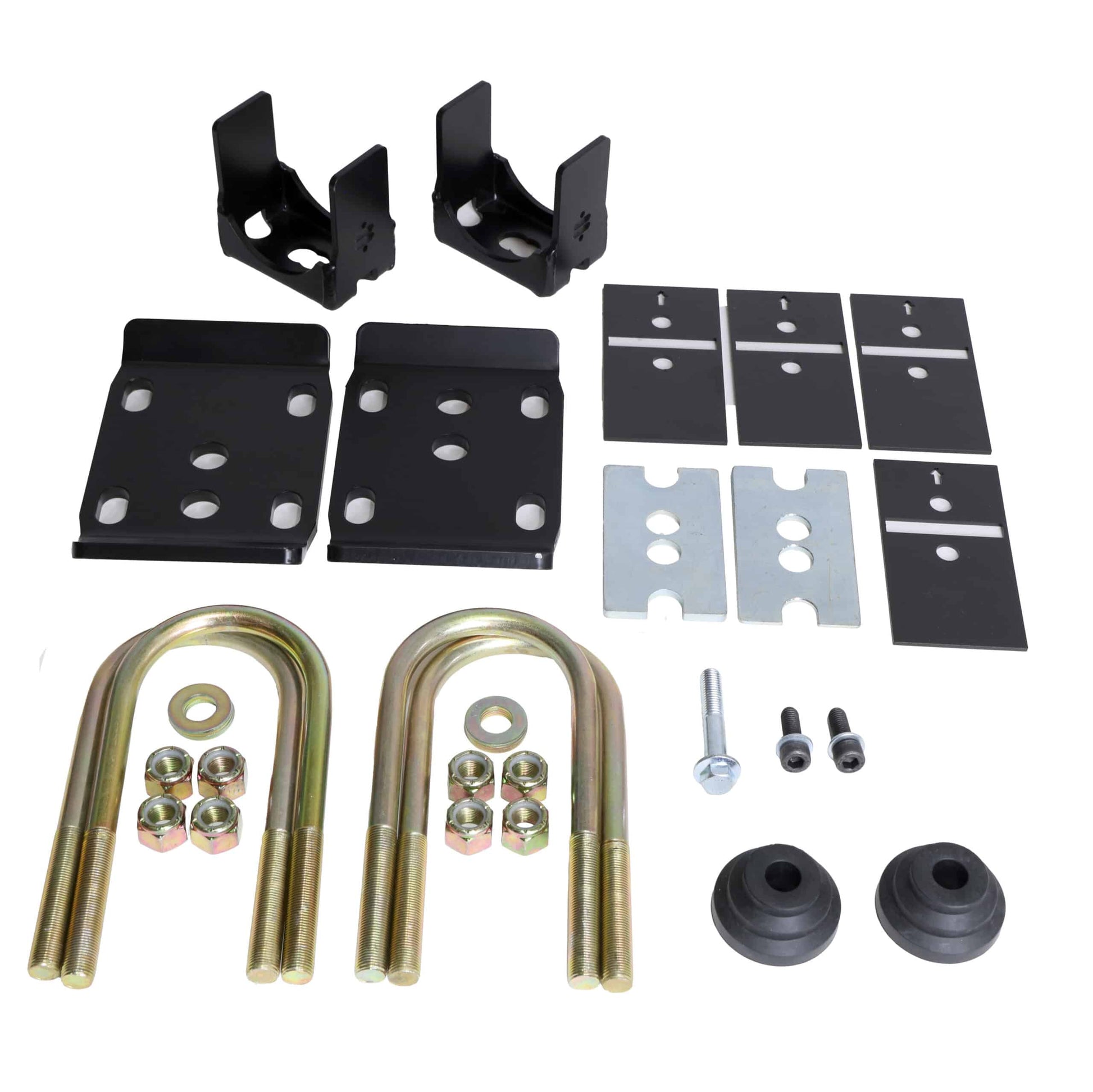

Ridetech’s top tier Touring System lowers the 2015-2026 Ford F-150 up to 3.5” in front & 5.5” in the rear all while placing special focus on NVH mitigation to promote street manners second to none. Includes front upper control arms, front Fox Factory Performance 2.0 coil-overs, flip bracket kit, and rear HQ series shocks & hardware.

Topping the list of Ridetech’s F-150 suspension product offering is our Ridetech Touring kit. Ridetech has had the performance side of the F-150 market covered for quite some time, and we recently released the StreetGRIP kit for those that are looking to gain improved stance above all else. But when it comes to a kit that is engineered for those demanding the best in ride quality and improved looks Ridetech’s Touring kit utilizes the latest and greatest in terns of suspension technology and quality hardware to drop your 2015-current F-150 (2WD & 4WD).

Ridetech’s Touring Kit improves stance and handling, while putting an extreme focus on NVH reduction and ride quality. Lower your 2015-2026 Ford F150 up to 3.5” in front and 5.5” inches in the rear, all while increasing handling capability and lateral performance. Ridetech’s Touring Lowering Kit is 100% bolt-on, fully adjustable and made in the USA. It includes everything needed to lower the Ford F-150 platform. While it is always great to improve performance, there is always a possibility of pushing too far in a key area like suspension. The Touring kit strikes the ideal balance between adding ride height and rebound adjustability along with retaining premium ride quality.

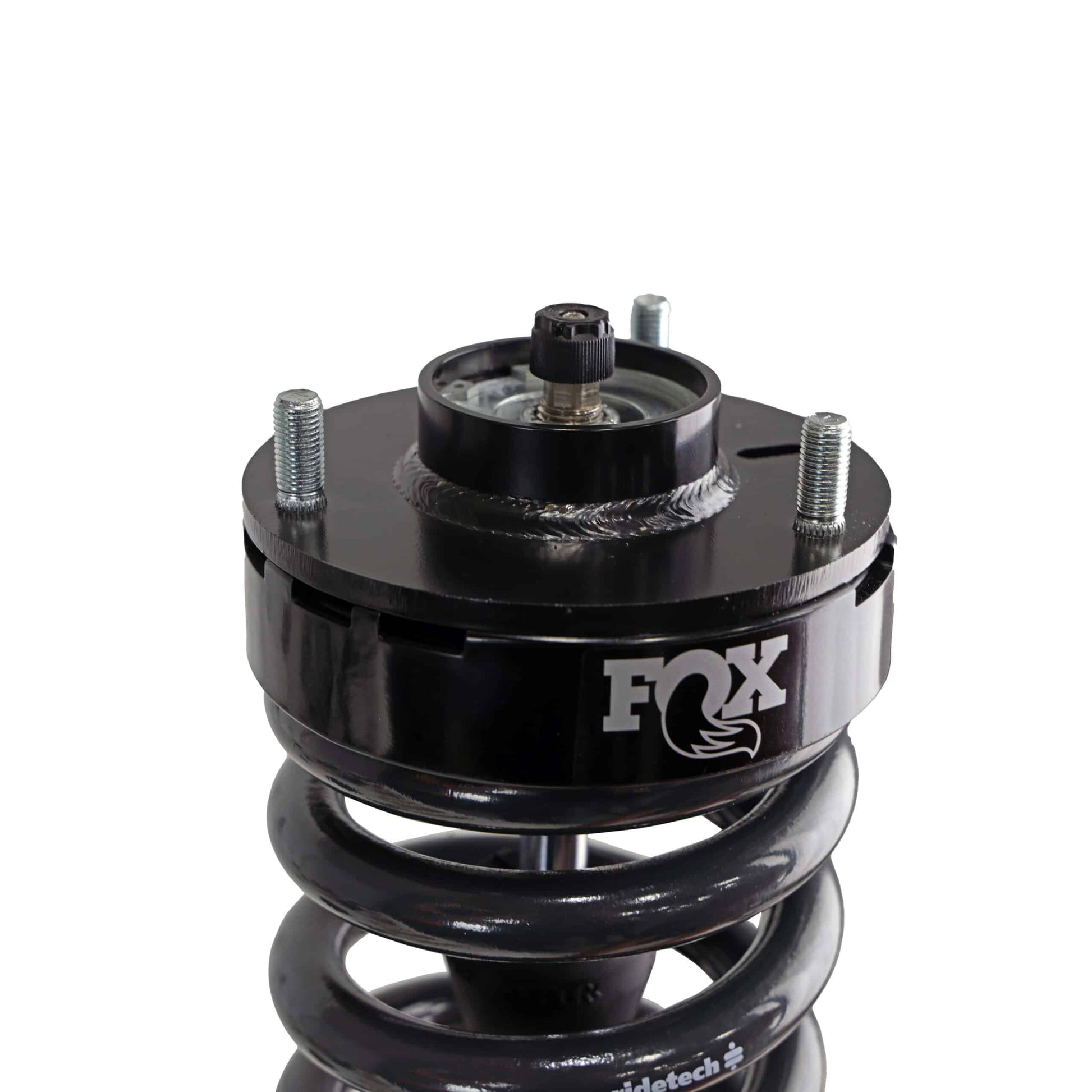

Fox Factory’s Performance 2.0 monotube aluminum body coil-overs and shocks boast large IFP pistons for damping and ride quality that is second-to-none. And that’s where things take a departure from their Performance Lowering variant. While that kit relies on hard mounted bearings to reduce deflection and improve suspension responsiveness, Touring kit coil-overs are rubber isolated in front and the rear is poly-bushed to deliver daily drivable street manners and felt-NVH mitigation that is typically in some coil-over equipped vehicles. Both front and rear suspension are 24 position rebound adjustable.

Features & Benefits:

Ridetech F-150 Touring Kit improves stance and handling while drastically reducing felt NVH (noise, vibration, harshness)

Improves looks and sharpens handling and response without compromising street manners.

Lowers truck from 1.5’’-3.5’’ front and 3.5’’-5.5’’ in rear

Made in the USA

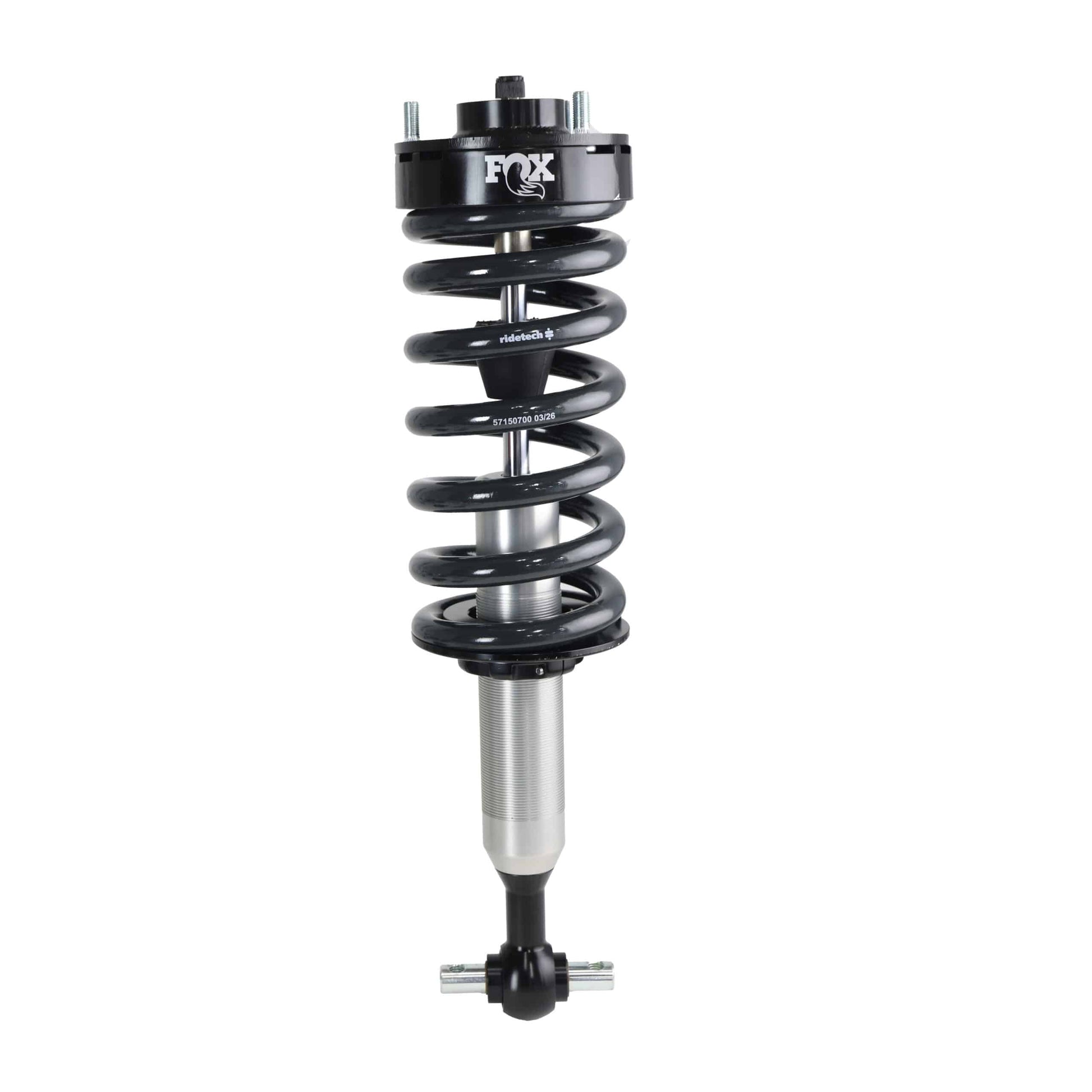

OE-style loaded coil-over strut design comes pre-assembled and ready to install

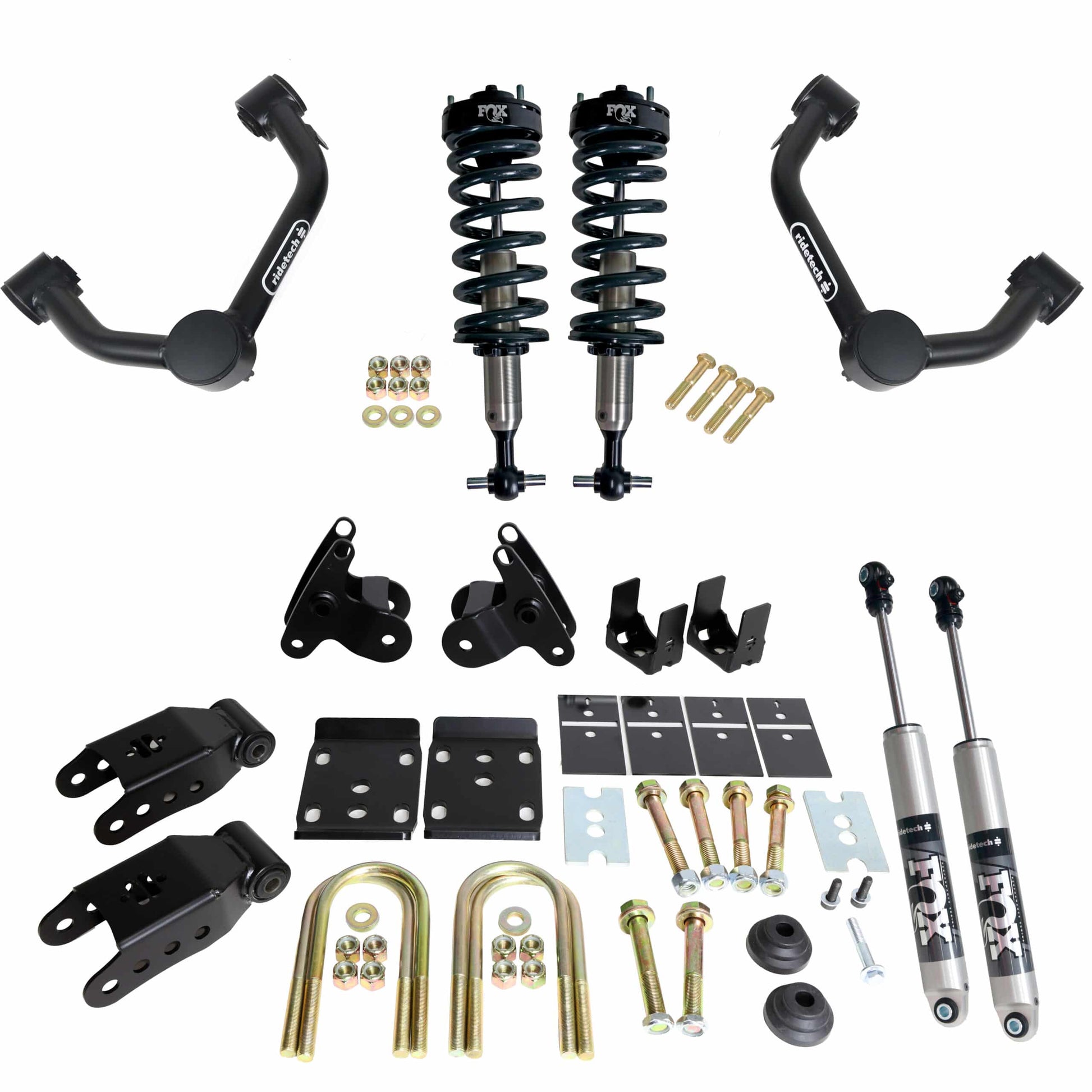

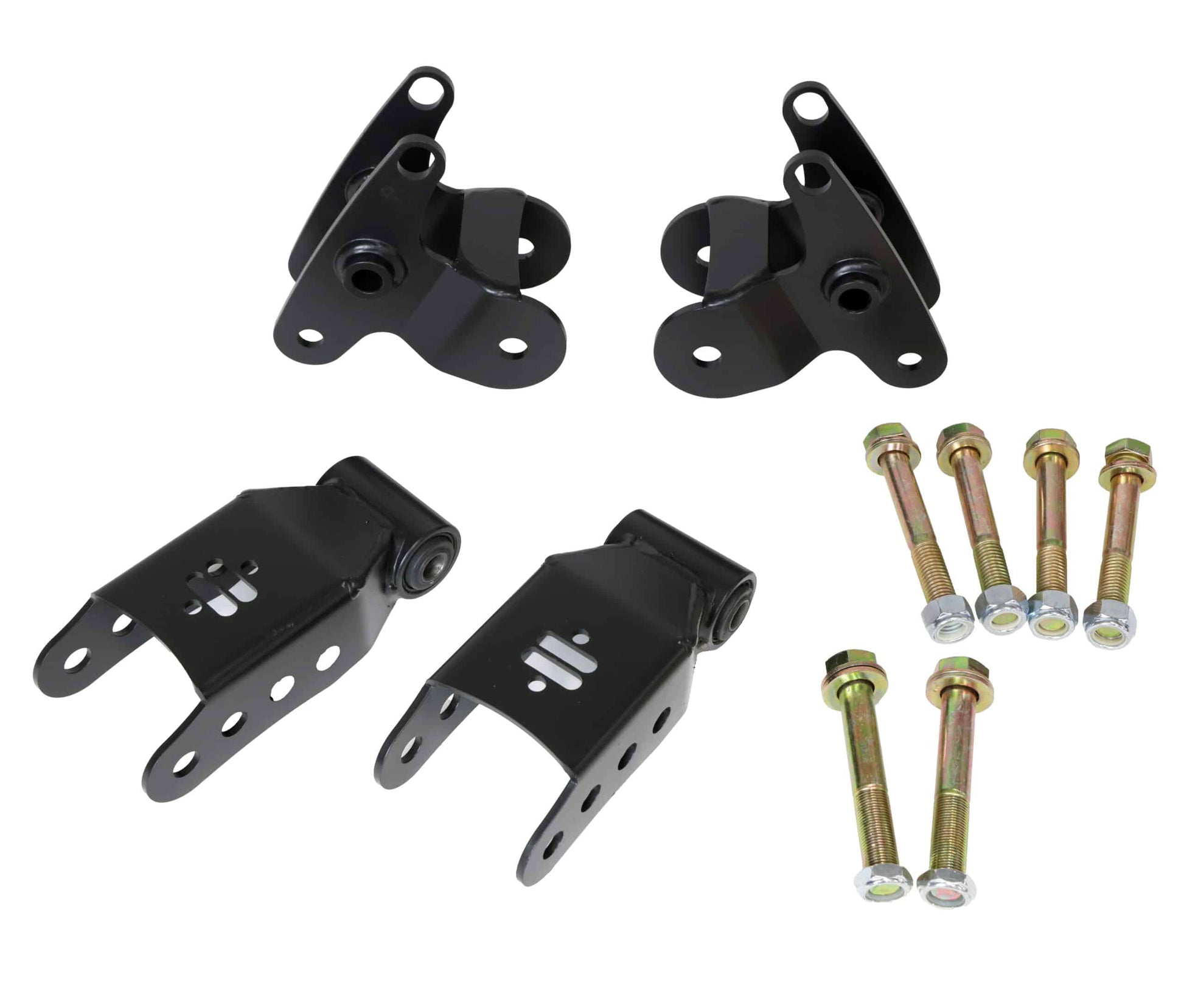

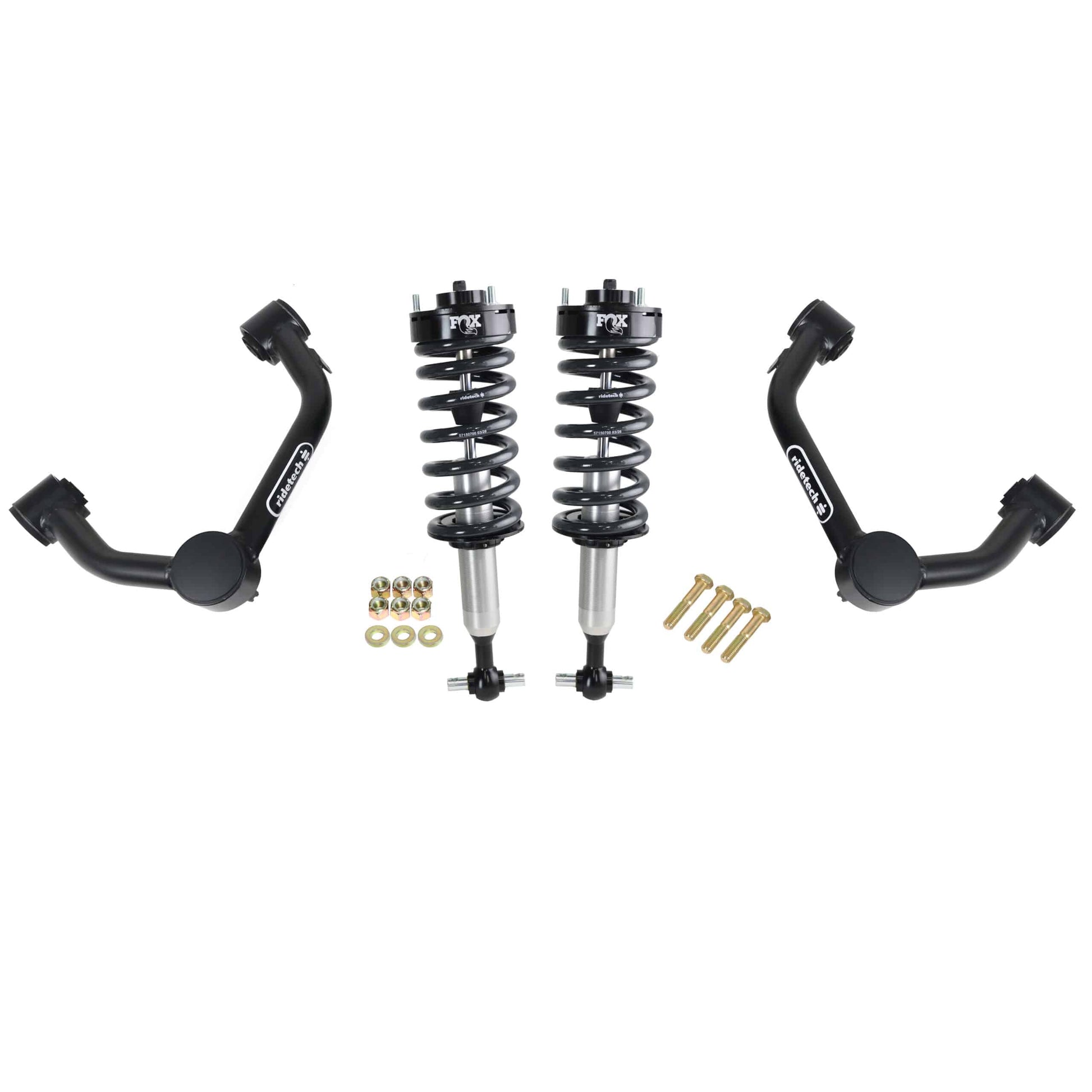

Includes everything needed for seamless installation including front coil-over struts, rear shocks, upper control arms, bracketry, and individually bagged by component hardware

Front coil-over struts are 11% lighter than OE factory Ford front strut suspension, reducing unsprung weight

Compatible with 2WD/4WD F-150 applications

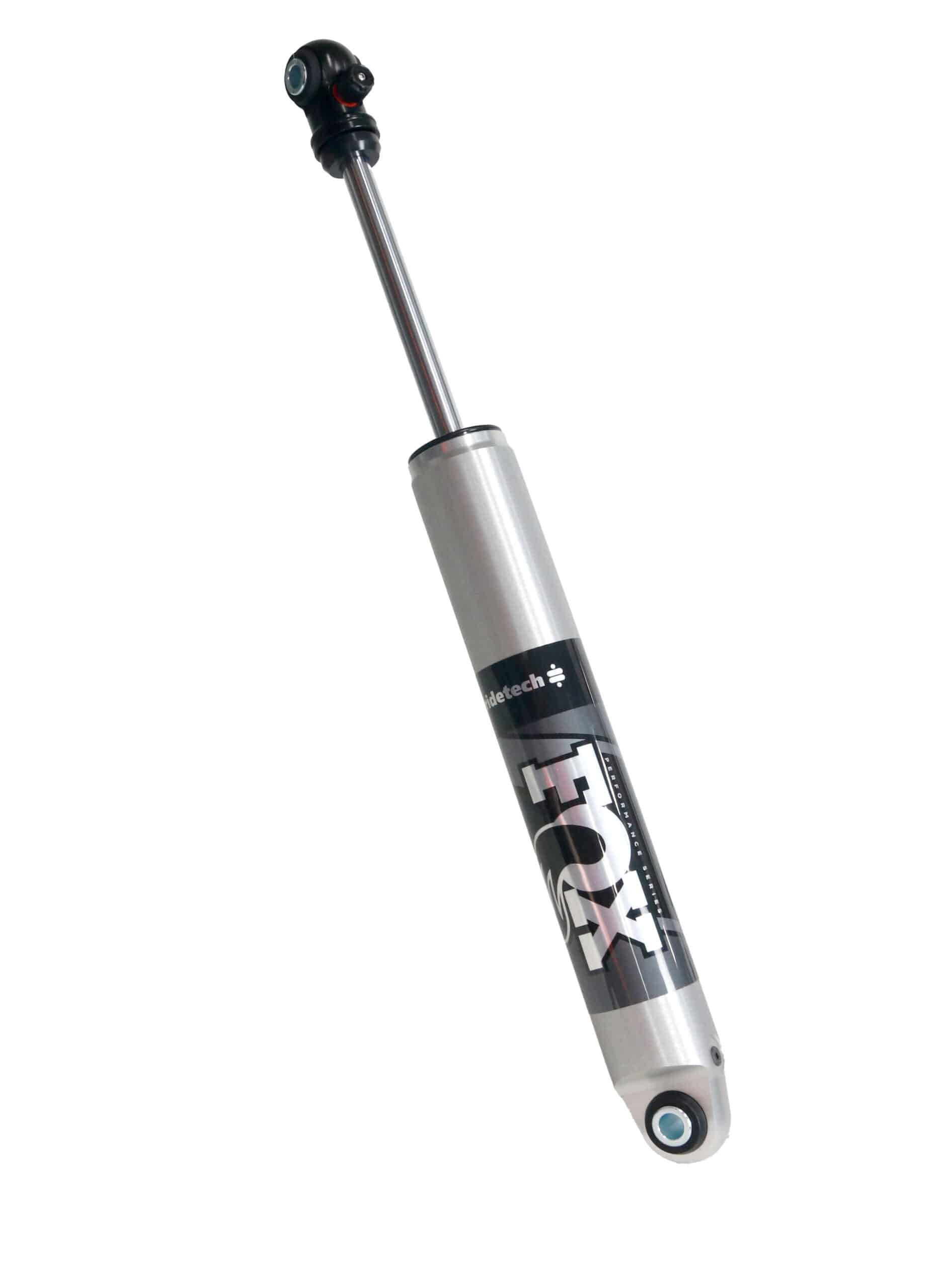

Fox Factory Performance 2.0 monotube aluminum body coil-overs and shocks utilize large IFP piston for excellent damping and ride quality

24-position rebound adjustment knob allows fine tuning of suspension response

Includes Ridetech tubular upper control arms, allowing for appropriate camber and caster improvements at new lowered stance

Completely bolt-on installation. No Welding or fabrication required.

Best-in-industry 1,000,001 mile warranty on coil-overs/shock

Compatible with existing Ridetech F-150 rear sway bar, traction bars, and load leveling system

Fitment Notes:

Compatible with “BlueCruise” & “PowerBoost” equipped trucks.

Not compatible with F-150 “Lightning” or “Raptor” models.

Trucks equipped with two height sensors on driver side only (Headlight Sensors option) require bracket kit Part # 12299501

Trucks equipped with four headlight sensors (On-board Scale option) require bracket kit Part # 12299502
