SPD PERFORMANCE DUAL EQUAL LENGHT PRE AXLE DUMP PERFORMANCE EXHAUST KIT FORD F150 15-20

Our premium equal length dual 3" kit is the most unique exhaust system which will completely change the sound and performance of your 2015-2020 5.0L F-150.  The kit starts with our high flow catted Raptor style 5.0L downpipes that will handle up to 750rwhp with our standard cats. More than 750rwhp??  GESI 85230 cats will handle up to 1600rwhp.  GESI G-Sport cats have metal substrates that are fused to the outer walls.  They won't break up or blow out.  They are the most resilient catalytic converts.

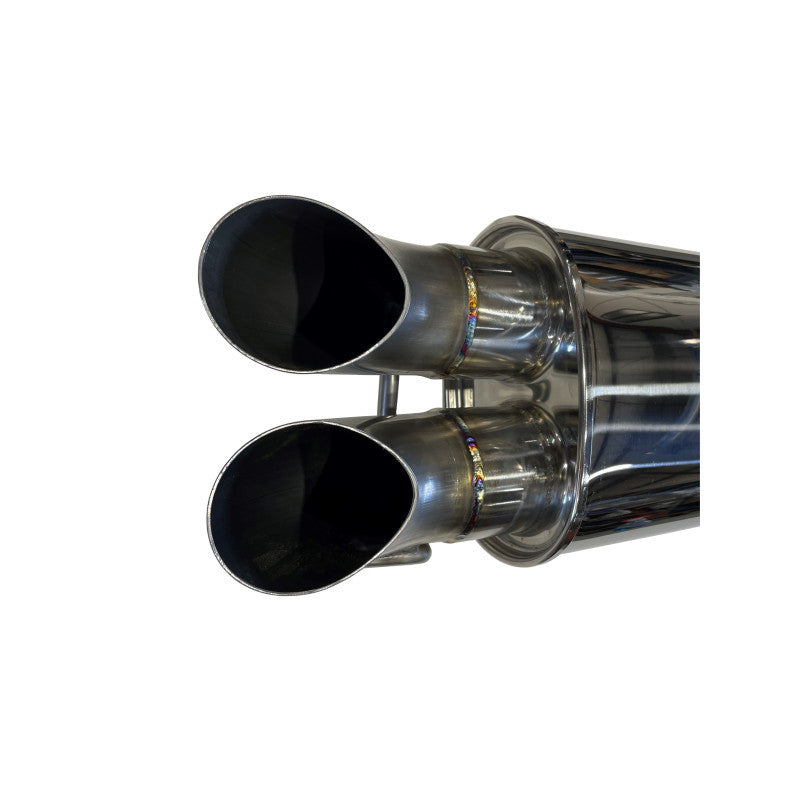

Our equal length with x-pipe is designed to balance exhaust pressures on both banks and it completely changes the exhaust tone. You will hear your 5.0L engine's true firing pattern and it sounds amazing. Our HX series straight-thru design dual in/dual out 3" muffler has a proprietary hard pack sound dampening material which filters out drone. It will not break down and get louder over time.  Loose pack (cheaper) sound dampening material will break down from harmonic vibrations and pressure changes in your exhaust system, eventually blowing out your tailpipe or settling on the bottom of your muffler.  Our cnc laser cut and machined flanges have the largest possible inner diameter for best possible flow. SPD Performance products are Proudly built in the USA!

What's a Helmholtz Resonator?

The main purpose of the Helmholtz resonator on this exhaust system is to reduce in cab noise/drone without making the exhaust too quiet. By targeting and neutralizing specific drone frequencies, you will still enjoy the exotic exhaust notes of the equal length without the drone.

Off-road and On-road Capability

Our pre-axle dump design has been off-road proven in the harshest environments and will gives you ultimate clearance.  Whether you raise, lower or install cantilever rear suspension, the exhaust system will  never be a problem.  You never have to worry about bending, denting or crushing your tail pipes or tips.  Just send it!!

Optional SPD Port Exhaust Manifolds

We have unlocked the full potential of the Ford Performance 5.0L Coyote manifolds which has produced over 1000hp without causing false knock.  Easy to install and comes with all new hardware. Fits all 2015-2024 F-150 5.0L Coyote V8

Optional S&B Cold Air Intake

Maximum Performance Our cold air intake was engineered to minimize air restriction and flows 40 percent better than stock. This kit comes with a fully enclosed airbox that protects the filter from dirt and keeps out engine heat.

Protect Your Engine. This kit comes with a massive, highly-efficient air filter which results in better performance and protects your engine.

Million Mile Warranty - S&B Air Filters and Intake Kits purchased from Authorized dealers are backed by S&B's Million Mile Limited Warranty. Only when used under the typical driving conditions and on vehicles or which they were designed. If one of our products is not performing properly or is defective, S&B replace it.

Breath Easy. Your Engine and warranty are protected - Installing a S&B Intake Kit or Air Filter will not void your vehicles warranty, as long as you properly install and maintain your intake kit or filter.

Fits all 145", 157" and 163" Wheelbase 5.0L F-150s

Included in this kit:

• DP50FR15SS-HFC - Raptor Style Dual Downpipes

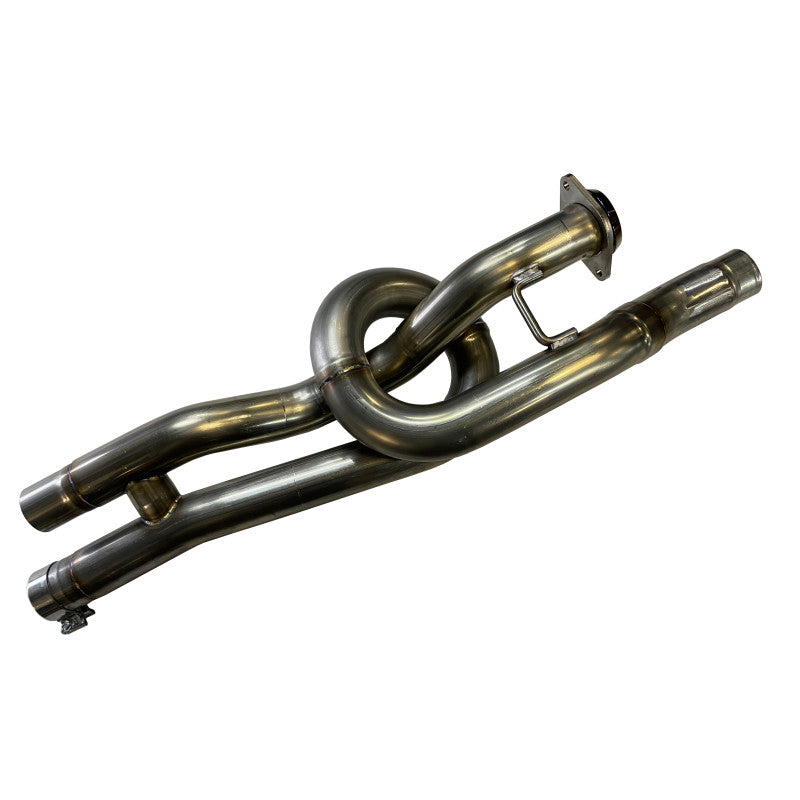

• RDFR20EL -  Equal Length Trombone

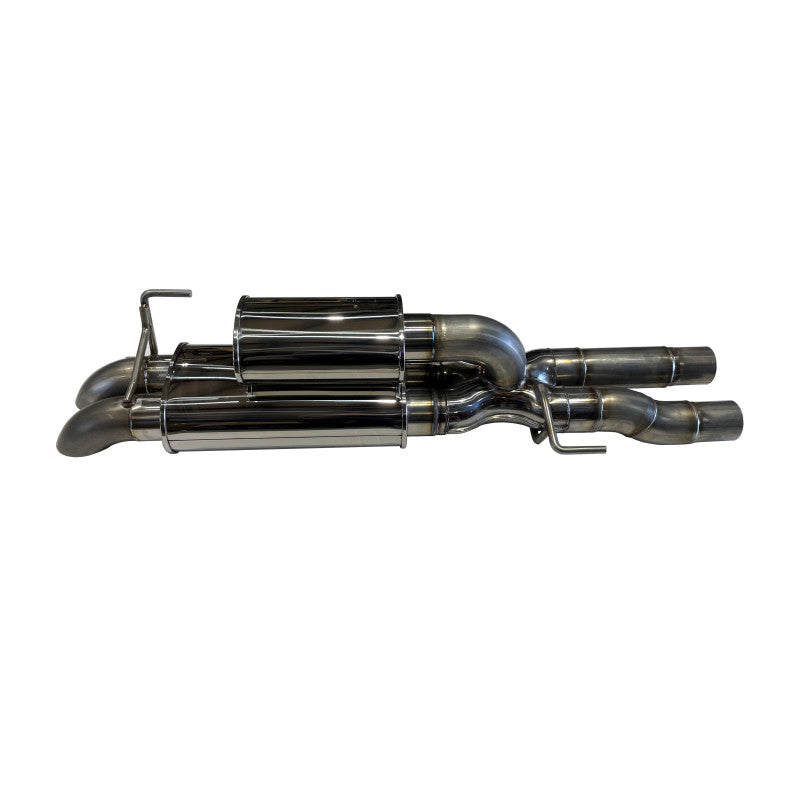

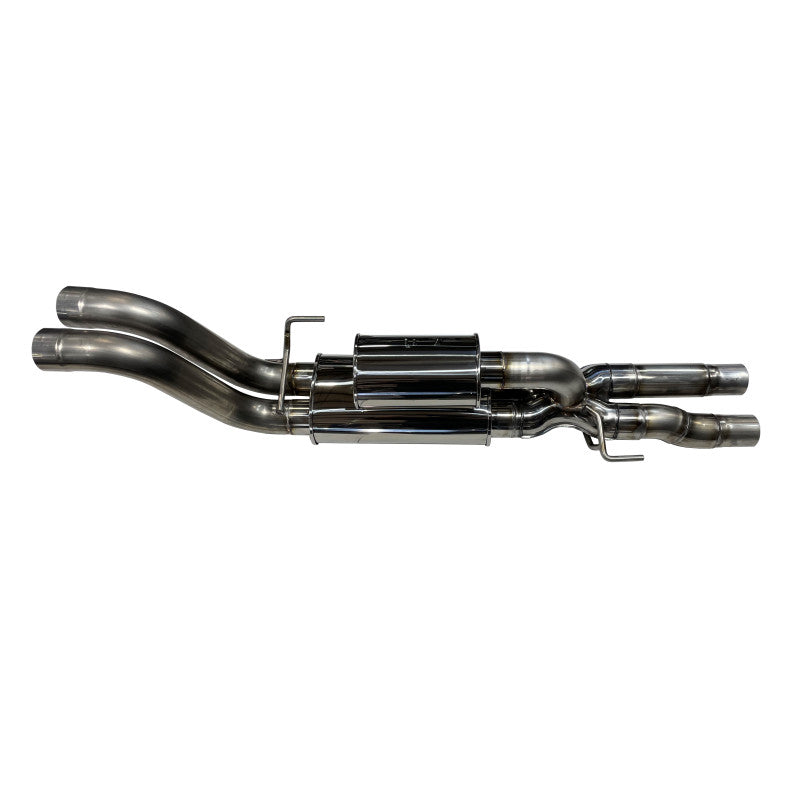

• HXFRM17RPA - HX Series Helmholtz Raptor Pre-Axle Dump Exhaust
• FR1520CK - Ford Frame Hanger and Exhaust Clamps

This kit will fit 2021-2024 5.0L F-150 but may cause a CEL because of the higher requirements of the 2021+ emission systems.
