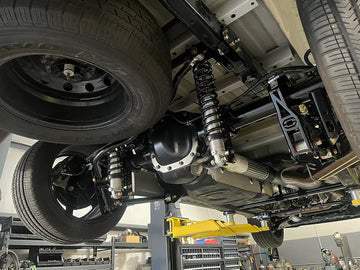

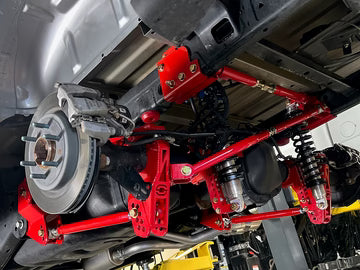

SUSPENSION ENGINEERING F150 REAR 4 LINK KIT SUSPENSION SYSTEM (2015-2024)

SUSPENSION ENGINEERING F150 Rear 4 Link Kit | Suspension System (2015-2024)

Suspension Engineering is proud to announce our full bolt on 4 link system designed for street and race truck applications. Suspension Engineering chassis and suspension components are designed and tested to create a high strength, durable product, with great fitment. Our manufacturing process employ automated tubing benders, CNC machining, and laser cut components. We stand behind our products, and you will not find a better quality product at such an affordable price.

Features Include:

• Full Bolt-on 4 Link Kit
• Hardware Included
• Includes Cast Polyurethane Bushings or (Upgraded Heim Joints "In Production")
• Adjustable Link Locations
• Bolts to Factory Leaf Spring Location
• Perfect for Street and Race applications
• Drilling required for Chassis Brace
• Bolt on Panhard Bar Mount
• Made in the USA

Other Optional Features Include:

• Bolt on Upper Coilover Mount Crossbar
• Weldable Axle Brackets with Adjustable Mounting
• Axle Brackets Work on 3 1/8" (3.125") Axle Housing
• Aldan Dual Adjustable Coilovers (Available in 17" or 19.5" Extended Length)
• Panhard Bar

Note: Four link kit is fully bolt-on, but if you run our recommended optional rear coil over conversion, you will need to weld the brackets to the axle.

Note: Axle Brackets will require welding to rear axle housing. Axle brackets would only work on factory axle diameter of 3 1/8" (3.125").

Note: For cleanest installation, brake system will have to be disconnected, and special care taken to ensure no air gets into the systems ABS module. Optional Taps and dies will be sold separately to help chase the threads on the fittings if desired, which have a high tendency of galling during teardown.

Vehicle Applications:

• 2015-2024 F150 (2WD & 4WD)
